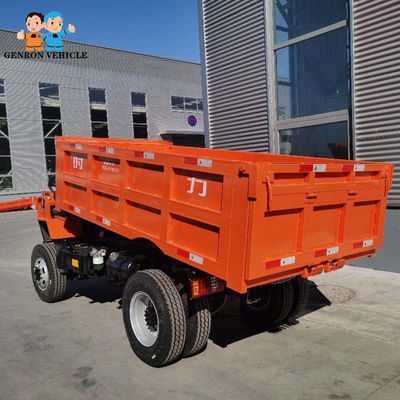

Diesel mini tipper dumper mining dump truck for sale
Mining dump trucks are widely used in off-highway outdoor sites,
such as large open pit mines, water conservancy projects,
dump trucks for transporting coal mines, metal mines and sands tones.
It is often combined with excavators, loaders and other construction machinery
to finish the loading, unloading and the complete transportation working lines.
Product Specification:
|
Name
|
Diesel mini tipper dumper mining dump truck for sale
|
|
product model
|
178T
|
|
Fuel type
|
diesel
|
|
engine type
|
YUNNEI490
|
|
engine power
|
46KW(63HP)
|
|
Gearbox model
|
530(Twelve gears high and low)
|
|
Real axle
|
DF1069
|
|
Front axle
|
SL178
|
|
Braking system
|
automatically air-cut brake
|
|
Rear wheelbase
|
1630mm
|
|
Front wheelbase
|
1630mm
|
|
Axle distance
|
2400mm
|
|
Frame
|
Main beam:Hight120mm*Wide60mm*Thickness8mm,Bottom beam:Hight80mm*Wide60mm*Thickness6mm
|
|
Unloading method
|
Dump ,800mm Double tops
|
|
Tire type of Front
|
700-16Mine tire
|
|
Tire type of Behind
|
700-16Mine tire(Double tire)
|
|
Overall size
|
Length 4900mm*Wide 1630mm*Hight1400mm
|
|
Box size
|
Length 3100mm*Wide 1600mm*Hight500mm
Backplate30+20 Removable
|
|
Thickness of container plate
|
Bottom10mm
Side5mm
|
|
Steering Gear Box
|
hydraulic power assisted
|
|
Leaf Spring
|
13pcs*Wide70mm*Thickness12mm
|
|
container volume
(m³)
|
2.2
|
|
Loading Capacity
|
5 tons
|
|
Tail gas treatment
|
exhaust purifier
|
Details:
Vehicle characteristics Reasonable design:
the whole vehicle design combines the characteristics of underground vehicles, compact structure,
reasonable layout. Length 4900mm*width 1630mm*height 1400mm. cargo compartment volume 2.2³.
It is suitable for use in 2.5*2.5 and above tunnels. Size can be customized according to requirements.
Strong load capacity:
the vehicle adopts the design concept of large horse-drawn car, rated load of 5 tons. Maximum load
capacity is 6 tons. It adopts Q345B manganese steel plate with high quality characteristics to make
closed box-shaped section steel frame, with solid structure, high torsional and impact strength,
large steel degree, strong and durable. The specially designed suspension system made of 60 silicon
di-manganese and the large diameter mining tires ensure its super load capacity. The load capacity
is 1.5 times that of ordinary road vehicles.
Good passability:
The compact structure of the 178T mine dump truck is suitable for flexible operation in the narrow space
of the shaft ramp by the special design of the cab (front part), suspension, frame, cargo compartment
and lifting mechanism, with compact structure and small turning radius, which is extremely flexible.
High safety factor:
According to the characteristics of humid air, insufficient light and slippery road, the vehicle lamps and
electrical components are improved, waterproof and moisture-proof performance is enhanced,
special anti-skid tires are selected, with strong ability to cross obstacles and good safety.
Good adaptability:
Timely can be applied to a variety of high-altitude, watery, high temperature and other complex working conditions.
At present, it has been applied to Tibet 4800m high altitude area without failure rate.
Package & Factory:
Marketing & Service:
Ghana,Burkina faso,Ivory Coast,Mali , Nigeria ,Chad ,Namibia ,Sudan, Egypt, Kenya, Zimbabwe,
Botswana, Mozambique, Zambia,Malawi,Uganda ,Tanzania,Malaysia, Philippines,Vietnam,,Myanmar,
Pre-sales service:
* Inquiry and consulting support.
* Sample testing support.
* Pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service:
* We will often go abroad to check our products ,and enlarge our office out of China.
* Engineers available to service machinery overseas.
* 16 Engineers always service for exporting business .
