Product Details:
|
| Name: | Heavy Duty Gooseneck Trailer | Dimension: | 18200x3600x1300mm |
|---|---|---|---|
| Axle: | 4 Axles Or 3 Axles | Gooseneck: | Detachable |
| Suspension: | Mechanical Suspension | Capacity: | 70 Tons |
| Tire: | 12 R 22.5 | Loading Deck: | 10 M |
| High Light: | 3 Axles Heavy Duty Gooseneck Trailer,4 Axles Heavy Duty Gooseneck Trailer,4 Axles heavy duty flatbed trailer |
||

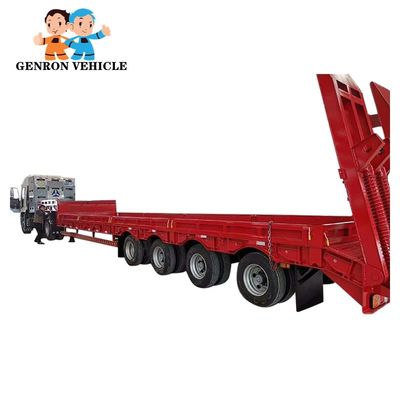

4 Axles Or 3 Axles Heavy Duty Gooseneck Trailer Mechanical Suspension
Application of Heavy Duty Gooseneck Trailer
Is applicable for the transportation of the mechanical equipment,
large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
More pictures:
The axles can be steering ones.
Drawings；
Congfigurations:
| Loading capacity | 70T | ||
| Size | 18200x3600x1300mm(board H) | ||
| Top flange plate | Material and thickness | Q345B 20mm |
| Bottom flange plate | Material and thickness | Q345B 25mm | |
| Material | Q345B | |
| Thickness | 14mm | ||
| Height | 550mm | ||
| Type | U steel | |
| Bending parts | |||
| Height | 250# U steel | ||
Ladder | Type | without | |
| Width | 400mm | ||
| Board height | 1300mm | (from the top of floor to the ground ) | |
| Material | Carbon steel Q235 | |
| Thickness | 5mm | ||
| Floor type | Checkered plate | ||
Running mechanism
| Engine | 1 | |
| Brand | ZY | |
| Type | 13t | ||
| Number | 4pcs | ||
| Rim | Type | 9.0-22.5 | |
| Number | 12 pcs | ||
Tire | Brand | Triangle brand | |
| Type | 12R22.5 | ||
| Number | 12pcs | ||
| Suspension | Mechanical suspension | ||
Spring leaf | Leaf width | 90mm | |
| Leaf thickness | 13mm | ||
| Layer/set | 10 Layer | ||
| King pin | Type | Bolts type | |
| Diameter | 2 inch | ||
Brake system | Air tank | 40L air tanks | |
| Brake chamber | 6 double spring brake chamber | ||
| ABS | Without | ||
Landing gear | Brand | Without | |
| Type | Without | ||
| Spare tire carrier | 1 | |
| Light | LED light | ||
| Voltage | 24v | ||
| Receptacle | 7 ways(7wire harness)and quick change type | ||
| Tool box | One piece | ||
| Painting | Polyurethane paint&anti-rust primer&sand blasting | ||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||
