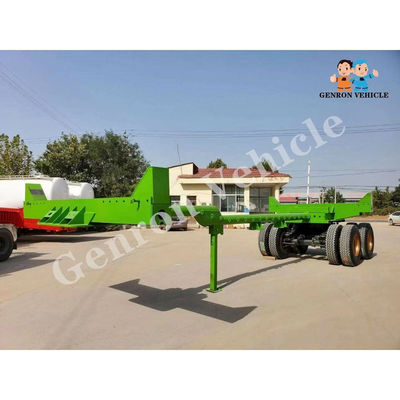

Product Details:
|
| Product Name: | Logging Trailer | Loading Capacity: | 50T |
|---|---|---|---|
| Axle: | 2 | Suspension: | Cantilever Dread Bogie Suspension |
| Leaf Spring: | 17pcs Heavy Duty Spring | Rim: | 9.75-22.5 Steel China Brand 9 Pcs |
| Tire: | 13.00R22.5 China Brand 9 Pcs | Color: | Optional |
| High Light: | bogie suspension logging semi trailer,50t logging semi trailer,17pcs spring Logging Semi Trailer |
||
Our logging trailer advantage:
Our Logging trailer adopt to main Column Pipe cantilever Dread Bogie Suspension design.
Main Column Pipe trailers were designed to minimize the overall tare weight of the trailer. It is limited to working with tree length material. The stems are not supported in the middle, just between the bolsters at either end.
Bogie Suspension has high passability, suitable for more road conditions, bigger load than the same level suspension.
Logging trailer design drawing:
Logging trailer information:
| Dimension | 10000 * 3160* 1750mm |
| Loading capacity | ≤50 ton |
| Main I Beams |
Welding I beam Design, Q345 carbon steel, Upper and down plate thickness is 20mm, middle plate is 10mm. |
|
Main Column Pipe/tube size |
Diameter is 200mm * 20mm thickness |
| Logging square | Without |
| Axle | 2 |
| Suspension |
32T Cantilever Dread Bogie Suspension |
| Leaf Spring | 17 pcs heavy duty spring |
| Pneumatic Braking System | Four double brake air chamber |
| Rim | 9.75-22.5 Steel China Brand 9 pcs |
| Tire | 13.00R22.5 China brand 9 pcs |
| Light | LED light (special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping item | By 40HQ container |
Logging trailer production details:
Logging trailer container transportation:
Our Service:
1.Before Sale
Quotation:
We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
2.After Sale Service
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
