Product Details:
|
Certification: | ISO/TS16949 | Product Name: | 16t 20t Truck Trailer Axles With China Famous Brand Rolling Bearing And High Quality Brake Drum |
---|---|---|---|
Material: | 20Mn2 Alloy Steel | Size: | 16tons ; 20tons |
Weight: | 374kg; 420kg | Tube: | Square 150*150*22mm(Thickness) |
P.C.D.: | φ335mm | Track: | 1850mm; 2050mm; 2180mm |
Type: | American Type; Fuwa Model | Capacity: | 50tons-80tons |
Axle Beam: | Quenching And Tempering | Oem No.: | OEM Service Provided |
Use: | Trailer Parts; Truck Tractor Accessories; Trailer Axles | Surface Treatment: | Painting |
High Light: | 20t truck trailer axles,20t heavy duty trailer axles,TS16949 truck trailer axles |

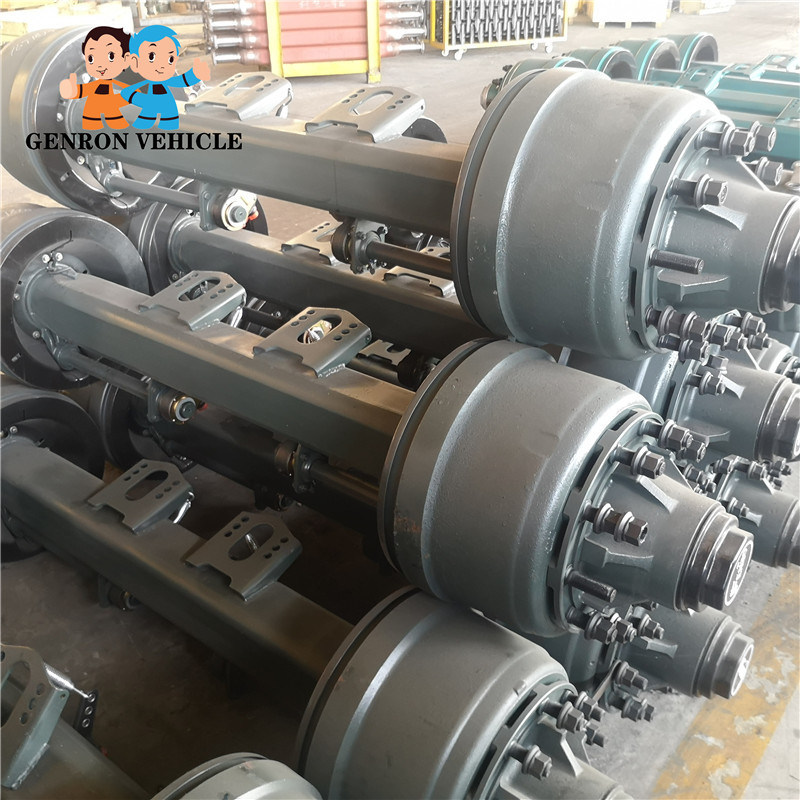

16t 20t Truck Trailer Axles with China Famous Brand Rolling Bearing and High Quality Brake Drum
Axle Type | Max Capacity (T) |
L2 Wheel Distance(mm) |
Brake (mm) |
Bearing | L3 (Distance between center of Spring seat) |
Axles Tube |
L4 Center Distance of Brake Chamber(mm) |
Wheel Fitting | L1 Outer Length (mm) |
Rim Size | Weight (KG) |
||
BOLT | P.C.D (mm) |
H (mm) |
|||||||||||
FA13YA1227 | 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
360 |
FA13YA1327 | 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 382 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
342 |
FA13FA1227 | 13 | 1840 | 420×180 | HM518445/10 | ≥930 | 150 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
358 |
FA13FA1327 | 13 | 1840 | 420×220 | HM518445/10 | ≥930 | 150 | 350 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
340 |
FA16YA1329 | 16 | 1850 | 420×220 | HM220149/10 HM518445/10 |
≥980 | 127 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 362 |
FA16FA1329 | 16 | 1850 | 420×220 | HM220149/10 HM518445/10 |
≥940 | 150 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 388 |
FA20FA1429 | 20 | 1850 | 420×220 | 32222 HM518445/10 |
≥940 | 150 | 345 | 1O×M24×1.5ISO | 335 | 280.8 | 2247 | 8.5V-20 | 430 |
1. Track length is optional;
2. Axles is available with ABS according to customers' needs.
If you only buy spare parts ,Our engineer can go to your factory to teaching your empolyee how to assembly the products ! |
Tensile length 250mm, tensile times 80000times. Strict Testing. |
Full test before shipment.
We keep moving every day,improve of our technology ,devolope new products to satisified more customers' demand.
