Product Details:
|
| Product Name: | 127mm 150mm Round Square Beam Trailer American Type Axle Assembly | Material: | 20Mn2 Alloy Steel |
|---|---|---|---|
| Size: | 13t 16t 20t 25t | Type: | American Type; Fuwa Model |
| Axle Beam: | Quenching And Tempering | P.C.D.: | φ335mm |
| Weight: | 357kg | Track: | 1840mm; 1850mm; 1950mm; 2050mm; 2150mm |
| Oem No.: | OEM Service Provided | Certification: | ISO/TS16949 |
| Use: | Trailer Parts; Truck Tractor Accessories; Trailer Axles | Surface Treatment: | Painting |
| Highlight: | 150mm trailer steel beams,150mm semi trailer cross beams,TS16949 trailer steel beams |
||
![]()

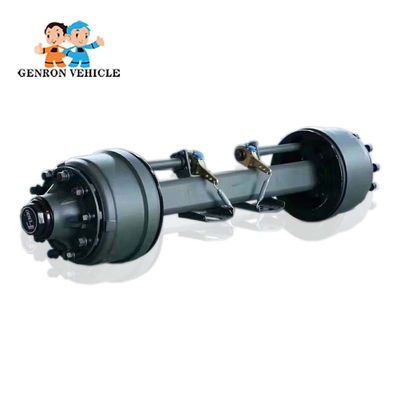

127mm 150mm Round Square Beam Trailer American Type Axle Assembly
| Max Capacity (T) |
L2 Wheel (mm) |
Brake (mm) |
Bearing | L3 (Distance between center of Spring seat) |
Axles Tube |
L4 Center Distance (mm) |
Wheel Fitting | L1 Outer Length (mm) |
Rim Size | Weight (KG) |
||
| BOLT | P.C.D (mm) |
H (mm) |
||||||||||
| 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
360 |
| 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 382 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
342 |
| 13 | 1840 | 420×180 | HM518445/10 | ≥930 | 150 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
358 |
| 13 | 1840 | 420×220 | HM518445/10 | ≥930 | 150 | 350 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 |
340 |
| 16 | 1850 | 420×220 | HM220149/10 HM518445/10 |
≥980 | 127 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 362 |
| 16 | 1850 | 420×220 | HM220149/10 HM518445/10 |
≥940 | 150 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 388 |
| 20 | 1850 | 420×220 | 32222 HM518445/10 |
≥940 | 150 | 345 | 1O×M24×1.5ISO | 335 | 280.8 | 2247 | 8.5V-20 | 430 |
1. Track length is optional;
2. Axles is available with ABS according to customers' needs.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Full test before shipment.
We keep moving every day,improve of our technology ,devolope new products to satisified more customers' demand.
