Product Details:
|
| Product Name: | 371hp Tractor Head Truck With Two Sleeper Cab | Engine: | WD615.47, 371HP , Euro II |
|---|---|---|---|
| Gear Box: | HW19710, 10 Forward & 2 Reverse | Steering: | ZF8118 Hydraulic Steering With Power Assistance |
| Cab: | HW79 TWO Sleeper, With A/C | Tire Size: | 11.00R20/12.00R22.5 |
| Fuel Tank: | 400L | ||
| High Light: | HW79 Tractor Head Trucks,HW79 semi trailer truck,WD615.47 Tractor Head Trucks |
||

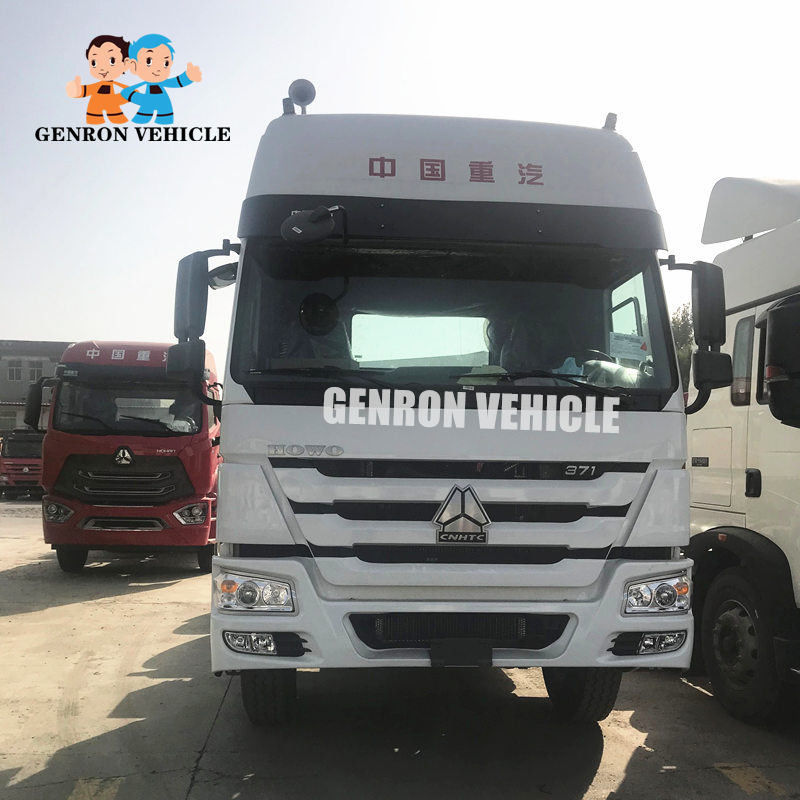

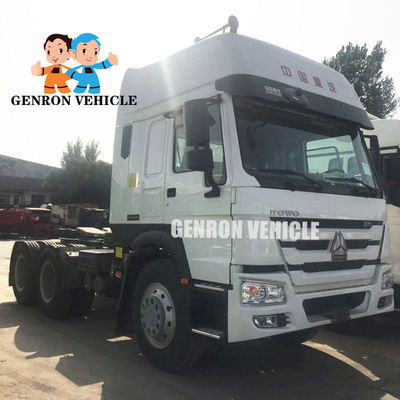

Good Quality 371hp Tractor Head Truck with Two Sleeper Cab
1.Product Overview:
371hp Tractor Head Truck with Two Sleeper Cab is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, adaptive to varied road conditions. The driving cab is elegant, safe and comfortable, perfect for the long-range and high-speed highway and freeway journeys.
| Model | ZZ4257V3241V | |
| Cabin | HW79, HOWO high roof cabin, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler | |
Engine |
Model | WD615.47 |
| Horse Power (Hp/rpm) | 371Hp Euro II | |
| Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
| Displacement (L) | 9.726 L | |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine | |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
| Tire | 12.00R20 | |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank | |
| Dead Weight (kg) | 9230 | |
| Gross Vehicle Weight (kg) | 33000 | |
| Gross Combination Weight (kg) | 80000 | |
| Overall Dimension(L*W*H)(mm) | 6800×2496×3718 | |
| Wheelbase(mm) | 3225+1350 | |
| Front/Rear Overhang( mm) | 1500/725 | |
| Wheel Track(Front/Rear)(mm) | 2022/1850 | |
| Min. Ground Clearance(mm) | 314 | |
| Approach/Departure Angle( °) | 16/70 | |
| Max. Speed (km/h) | 102 | |
| Max. Gradebility (%) | ≥40 | |
| The Fifth Wheel | 2"(50#) Option: 3.5"(90#) " |
|
More picture:
2. Related Products:
SINOTRUK HOWO 6X4 420HP TRACTOR TRUCK MODEL ZZ4257V3247W
3.Packaging & Shipping:
All for our customers,we will choose the most safety and economy solutions shipping.
Our HOWO Tractor truck and dump truck will be shipped by BULK ship, RO-RO ship or FLAT RACK.
4. FAQ
Q:How to choose a suitable HOWO TRACTOR TRUCK HEAD ?
A: (1) Towing weight is less than 35tons on highway: logistics company, time is very important. High-speed truck are your best choice. Because these trucks have better road condition and high engine power, they are the best choice, such as 336hp, 371hp, and 420hp. 10 to 16 forward gear aluminum alloy gearbox, with a single-stage reduction drive axle with a speed ratio of less than 4, select inner tubes and radial tires of 295/80R22.5 or 315/80R22.5. The economic speed is 75-105 km/h, and you can also choose to install a deflector, which can reduce air resistance and save fuel.
(2) Heavy-duty tractor: The towing weight is between 50tons and 7otons: It is best to use a tractor with an engine power of 420hp, a double reduction axle with a larger speed ratio of 4.42 or 4.8, and 11.00R20 and 12.00R20 tires. The economic speed is 72 km/h.
(3) Super-heavy tractor: transporting large cargo and towing weight more than 100tons, super-strong frame, engine power 420hp, radial tires, driving speed no more than 55 km/h, large transmission ratio 5.73, two-stage reduction axle.
Q:WHAT’S YOUR MOQ AND DELIVERY TIME?
A:Usually,our MOQ is 1 sets,and our delivery time is within 30 days for new placed order, and for stocked trucks our lead time is within 5 workdays.
Q:CAN I CHOOSE THE TRANSPORTATION METHOD BY MYSELF?
A:Yes,of course.But if CIF, you choose a different ships,that means the price will be different,(such as: the price of bulk cargo ship is different from RO-RO ship )so the price will be changed,please notice that.
Q:DO YOU SUPPLY SPEAR PARTS?
A:Yes,we can provide all parts of the truck,like engine parts,electric parts,truck body parts and truck cabin parts.
Q:HOW CAN WE GET AFTER SALE SERVICE ?
A:We SINOTRUK Group has many overseas after sale service center, you can get services in these center,Also we can provide you technical support and parts supply.
