Product Details:
|
| Product Name: | Sinotruk HOWO Trailer Truck 12.00R24 Tire 420HP Tractor Head Truck With High Roof Two Sleeper | Model: | ZZ4257V3247W |
|---|---|---|---|
| Engine: | 420HP Euro II | Gear Box: | HW19710, 10 Forward & 2 Reverse |
| Steering: | ZF8118 Hydraulic Steering With Power Assistance | Driving Axle: | HC16, 16 Tons Hub Reduction |
| Cab: | HW79 TWO Sleeper, With A/C | Wheelbase: | 3225+1400mm |
| Tyre: | 1200R24,11 Units( With One Spare Tire) | ||
| Highlight: | 12.00R24 Tractor Head Trucks,12.00R24 international truck tractor,10wheeler Tractor Head Trucks |
||

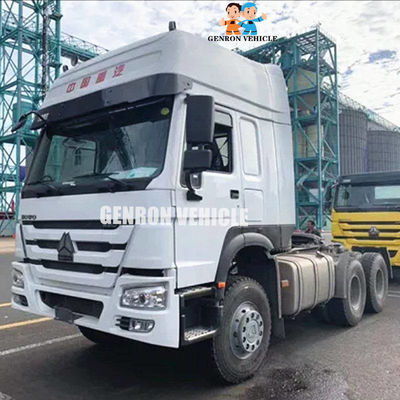

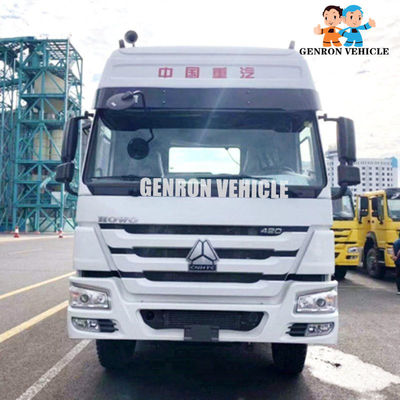

SINOTRUK HOWO 6X4 420HP TRACTOR TRUCK MODEL ZZ4257V3247W
1.Product Overview:
Sinotruk HOWO Trailer Truck 12.00R24 Tire 420HP Tractor Head Truck is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, adaptive to varied road conditions. The driving cab is elegant, safe and comfortable, perfect for the long-range and high-speed highway and freeway journeys.
| Model | ZZ4257V3247W | |
| Cabin | HW79, HOWO high roof cabin, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler | |
Engine |
Model | D12.42 |
| Horse Power (Hp/rpm) | 420/2200 | |
| Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
| Displacement (L) | 11.596 | |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine | |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
| Tire | 12.00R24 | |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank | |
| Dead Weight (kg) | 9230 | |
| Gross Vehicle Weight (kg) | 33000 | |
| Gross Combination Weight (kg) | 80000 | |
| Overall Dimension(L*W*H)(mm) | 6800×2496×3718 | |
| Wheelbase(mm) | 3225+1400 | |
| Front/Rear Overhang( mm) | 1500/725 | |
| Wheel Track(Front/Rear)(mm) | 2022/1850 | |
| Min. Ground Clearance(mm) | 314 | |
| Approach/Departure Angle( °) | 16/70 | |
| Max. Speed (km/h) | 102 | |
| Max. Gradebility (%) | ≥40 | |
| The Fifth Wheel | 2"(50#) Option: 3.5"(90#) | |
2. Related Products:
Sinotruk HOWO Trailer Truck 12.00R24 Tire 371HP Tractor Head Truck With High Roof Two sleeper and 400L+ 600L Fuel tank for Sudan
3.Packaging & Shipping:
All for our customers,we will choose the most safety and economy solutions shipping.
Our HOWO Tractor truck and dump truck will be shipped by BULK ship, RO-RO ship or FLAT RACK.
4.Our Services :
Excellent and Outstanding After Sales Service
(1) Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
(2) Our engineers have 12 years of overseas maintenance experience.To provide customers with the most efficient and effective problem solving solutions.And our company have adequate HOWO truck spare parts for supply to our customers.
