Product Details:
|
| Axle: | 13T FUWA Axle | Suspension: | Mechanical Suspension |
|---|---|---|---|
| Valve: | WABCO Brand Emergency Brake Valve | Usage: | Transport Heavy Machinery |
| Support Leg: | Standard 28 Ton | Name: | Lowboy Semi Trailer |
| Key Word: | Heavy Duty Low Bed Trailers | Loading Capacity: | 20-150T |
| Ladder: | Manual Or Hydraulic Type | Bottom Platform: | 3-6mm Thickness Diamond Steel Plate |
| Side Beam: | 16mm -30mm Channel Steel | ||
| High Light: | modular hydraulic low bed trailer,modular 40 ft lowboy trailer,40FT hydraulic low bed trailer |
||

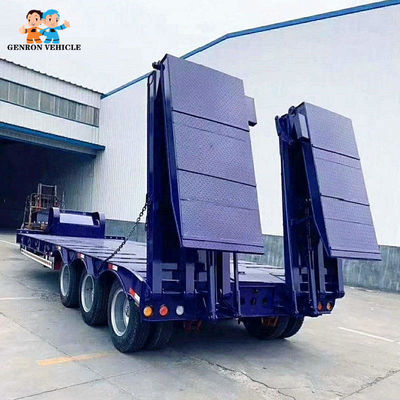

Cheap Price Lowboy Semi Trailer Sale In Africa Heavy Duty Low Bed Trailers
Low bed semi trailers are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavy goods. This kind of trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to pass through height limit roads.
| Product Name | Cheap Price Lowboy Semi Trailer Sale In Africa Heavy Duty Low Bed Trailers |
| Key Word | Heavy Duty Low Bed Trailers |
| Tare Weight | About 8.5-13T |
| Dimension | 13000mm*3000mm-3500mm*1650mm (Size can be chosen freely) |
| Loading Capacity (T) | 40T-100T |
| Axle | 13 T/16T, FUWA /BPW /GV Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market) |
| Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (Special for export market) |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam |
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |
| Bottom Platform | 3-6mm thickness diamond steel plate |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choice |
| Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light (Special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container |
Shipping Item : A & B
A:
If your order is two units low bed trailer or double pieces ,you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.
B:
This package for roro ship or bulk cargo ship delivery.
If your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage : the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding ,can be work directly after you received.
