Construction Triaxle Excavators Heavy Duty Low Bed Trailers

Construction Triaxle Excavators Heavy Duty Low Bed Trailers
Construction Triaxle Excavators Heavy Duty Low Bed Trailers Construction Triaxle Excavators Heavy Duty Low Bed Trailers

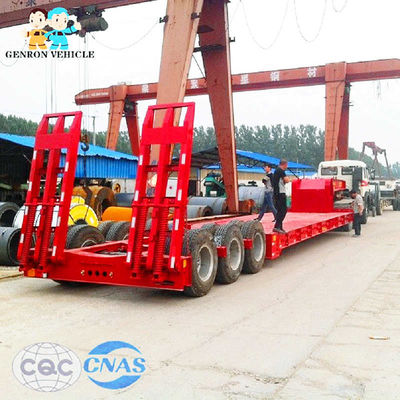

Large Image :  Construction Triaxle Excavators Heavy Duty Low Bed Trailers

Product Details:
Place of Origin: China
Brand Name: Genron
Certification: CE
Model Number: GV06009
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 15000 - 20000 per unit
Packaging Details: naked packaging
Delivery Time: 15-20 work days
Payment Terms: T/T
Supply Ability: 80 units per month

Construction Triaxle Excavators Heavy Duty Low Bed Trailers

Description
Axle: 13T FUWA Axle Suspension: Mechanical Suspension
Valve: WABCO Brand Emergency Brake Valve Usage: Transport Heavy Machinery
Support Leg: Standard 28 Ton Name: Low Platform Semi Trailer
Key Word: Heavy Duty Low Bed Trailers Loading Capacity: 20-150T
Gooseneck: Equal Width In Front And Back Bottom Platform: 3-6mm Thickness Diamond Steel Plate
King Pin: 2"(50mm) Or 3.5"(90mm) JOST
High Light:

excavators Heavy Duty Low Bed Trailers

,

excavators 3 axle low bed trailer

,

triaxle Heavy Duty Low Bed Trailers

Used In Construction Industry Low Platform Semi Trailer Heavy Duty Low Bed Trailers



Low bed semi trailer is usually used to transport heavy vehicles (e.g., tractors, buses and special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, engineering machinery (such as excavators, bulldozers, loaders, paver, cranes, etc.), and other heavy goods. The center of gravity of low bed semi trailer is lower, the better the stability and safety, transport over height cargoes and overhead obstacles by the stronger the ability.



The optimization design of low bed semi trailer series is flexible and diverse. The frame bearing surface can be designed according to the user's requirements to meet various special goods transportation requirements. A variety of sizes and styles are available. Depending on the number of axles, tire size and different load requirements, the loading capacity design range can be up to 20-150 tons. We use high-strength steel, which has light weight, and ensures the trailer’s anti twist, anti-seismic, anti bumping and bearing capacity of different roads. Trailer configuration and design requirements can be discussed in detail, You can also visit our factory on the spot. Professional trailer manufacturer Genron is here to serve you wholeheartedly!



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 0



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 1



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 2



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 3



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 4



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 5Construction Triaxle Excavators Heavy Duty Low Bed Trailers 6Construction Triaxle Excavators Heavy Duty Low Bed Trailers 7



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 8



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 9



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 10



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 11



Product Name Used In Construction Industry Low Platform Semi Trailer Heavy Duty Low Bed Trailers
Key Word Heavy Duty Low Bed Trailers
Tare Weight About 8.5-13T
Dimension 13000mm*3000mm-3500mm*1650mm (Size can be chosen freely)
Loading Capacity (T) 40T-100T
Axle 13 T/16T, FUWA /BPW /GV Brand
Rim 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire 8.25R20/10.00R20/11.00R20/12.00R20
Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand ) (Special for export market)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

(Special for export market)

King pin JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg JOST brand D200T or China brand 28Tons (Double speed)
Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .

Side beam 16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform 3-6mm thickness diamond steel plate
Ladder Manual or Hydraulic type
Gooseneck For choice
Brake chamber 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS Optional
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve WABCO valve
Light LED light (Special for export market)
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.


Construction Triaxle Excavators Heavy Duty Low Bed Trailers 12



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 13



Shipping Item : A & B



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 14



A:



If your order is two units low bed trailer or double pieces ,you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 15



B:



This package for roro ship or bulk cargo ship delivery.



If your order is more than three units or 6 or 9 can be package like this .



Pls check your destination port if there is bulk cargo port near to your city.



Disadvantage : the bulk cargo fee is a little expensive than the container fee.



Advantage: no need welding ,can be work directly after you received.



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 16



Pre-sales service



*Inquiry and consulting support.



* Sample testing support.



* pick you from airport together to visit factory production line ,and make sure your safety in China.



After sale service



* We will often go abroad to check our products .



* Engineers available to service machinery overseas.



24 hours online to answer customer's questions.



Construction Triaxle Excavators Heavy Duty Low Bed Trailers 17



1. Why do you choose Genron?



11 years overseas experience:



As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana,Burkina faso,Cameroon,Nigeria,Mozambique,Zambia ,Tanzania ,Kenya,Malaysia ,Indonesia ,Philippine,Vietnam ,LAOS ,Mayanmar,Algeria,Dubai.



Mirror Trading:



We will gave you the best price and quality product .Because we hope our cooperation like mirror ,Customer as mirror ,one side is factory ,inside is Genron.



We Minimize all loses that may arise from the producers .We respond to the demands and requirements of the companies , we work with in the most effective way and as soon as possible.



Professional Technical Team:



The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technical person:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang( design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).



2. How we can cooperate (Business Partnership) ?



As your China Purchasing Agent:



You can buy from the factory directly ,we can be your exporting agent in China.



You can be Genron Sales Agent : We have our own brand and logo,we have more than three very Steady producer partners of each product which we supply to you in China ,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.



3.What is Genron profit ?



To be Purchase agent : You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us.



You buy from Genron or to be agent of Genron:



The factory will pay us export agent fees.
