Product Details:
|
Material: | Steel | Suspension: | Mechanical Suspension/ America Type |
---|---|---|---|
King Pin: | JOST 2.00 Or 3.5 Inch Bolt-in King Pin | Landing Gear: | JOST (D200T)or CHINA BRAND 28T |
Axle: | 2 Axles FUWA/HUAJING Brand 13tons Or 16tons Per Axles | Color: | Customized |
Dimension: | 11280*2495*3970mm ( Outside) 10500*2300*1700mm (work Space ) | Loading Capacity: | 50T |
Tire: | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand Can Be Optional | Rim: | 9.00-22.5/8.00-20/8.5-20 China Brand |
Product Description

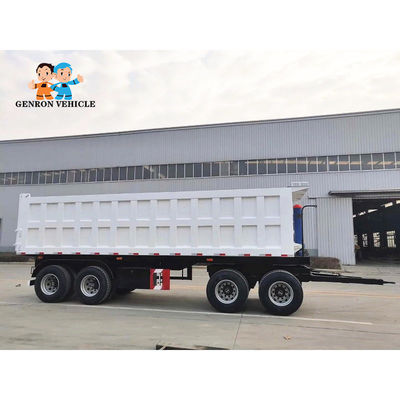

2 Axles Heavy Duty Genron Brand Rear Tipping Truck Semitrailer Delivery Coal ,ore Export To Cameroon, Nigeria
Main Dimensions | |
Dimension |
11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) |
Tare weight | About 15600KGS |
Total Volume(m3) | 37 m³ or less than 80tons |
Side wall thickness(mm) | 6mm Q235 steel |
Bottom plate thickness(mm) | 8mm /Q235 steel |
Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 2 axles, FUWA/HUAJING brand 16tons per axles |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
Product Details
Advantages Of 2 Axles Heavy Duty Genron Brand Rear Tipping Truck Semitrailer
1. The self unloading semi-trailer is suitable for the transportation of bulk goods such as coal, ore, construction materials, etc. Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering and other transportation tasks, usually used together with excavators. The other type of light and medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand, soil, coal and other loose goods, which is usually used together with loaders.
2. The carriage is rollover, which can effectively improve the transportation efficiency of bulk goods transported by the loader.
3. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.
Features of 2 Axles Heavy Duty Genron Brand Rear Tipping Truck Semitrailer
1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine.
2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel.
3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform;
4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance .
5. Brake system: adopt safe and reliable circuit air brake system .
6. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers .
The Factory
Why Choose Genron ?
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security. Just trust us, you will get a satisfactory answer.
Certifications
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
