Product Details:
|
| Material: | Steel | Suspension: | Mechanical Suspension/ America Type |
|---|---|---|---|
| King Pin: | JOST 2.00 Or 3.5 Inch Bolt-in King Pin | Landing Gear: | JOST (D200T）or CHINA BRAND 28T |
| Axle: | 3 Axles, FUWA/HUAJING Brand 13tons Or 16tons Per Axles | Color: | Customized |
| Dimension: | 9200*2400*3200mm ( Outside) 9000*2200*1500mm (work Space ) | Loading Capacity: | 50T |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand Can Be Optional | Rim: | 9.00-22.5/8.00-20/8.5-20 China Brand |
| High Light: | 30M3 Dump Semi Trailers,30M3 semi tipper trailer,50Tons Dump Semi Trailers |
||
Product Description

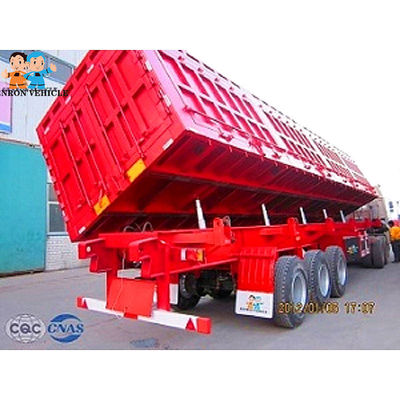

50 Tons Heavy Duty Side Tipper Semi Truck Trailer Delivery Stones Or Sands
| Main Dimensions | |
| Dimension |
9200*2400*3200mm ( outside) 9000*2200*1500mm (work space ) |
| Tare weight | About 10000KGS |
| Total Volume(m3) | 30 m³ or less than 50tons |
| Side wall thickness(mm) | 2.3mm Q235 steel (three or five door opening door ) |
| Bottom plate thickness(mm) | 3mm diamond plate /Q235 steel |
| Lifting system | Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.) |
| Chassis | |
| Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
| Axle | 3 axles, FUWA/HUAJING brand 13tons or 16tons per axles |
| Landing Gear | JOST (D200T)or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/ America type / |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
Features of 50 Tons Heavy Duty Side Tipper Semi Truck Trailer
1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine.
2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel.
3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform;
4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance .
5. Brake system: adopt safe and reliable circuit air brake system .
6. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers .
Details Of 50 Tons Heavy Duty Side Tipper Semi Truck Trailer
Our Service
1.Before Sale
Quotation:
We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
2.After Sale Service
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
Certifications
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
