|Product Name:||Oil Tanker Trailer||Size:||12000mm*2490mm*3990mm|
|Suspension:||Air Suspension And Mechanical Suspension||Material:||Steel|
|Type:||Semi Trailer||Function:||Delivery For Oil And Diesel Or Fuel|
|Weight:||About 8000KGS-12800KGS||Color:||Customer Optional|
50000L water hauling tanks trailers,
Carbon Steel 50000L Hauling trailer,
Steel water hauling tanks trailers

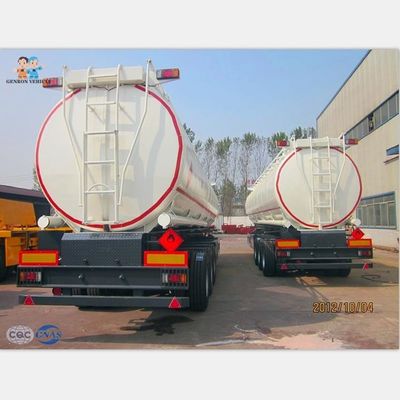

Product introduction of 40000-50000L Tri-axle Carbon Steel Oil Tank/Fuel Transport Tanker Semi Truck Trailer
|Tare weight||About 8000KGS-12800KGS|
|Total Volume(m3)||40 m³|
|Tanker Body Material||5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel|
|End Plate||5mm or 6mm /Q235 carbon steel /aluminum /stainless steel|
|Manhole Cover||Carbon steel or Aluminum alloy API manhole cover, ∮500mm|
|Bottom Valve||Aluminum API Pneumatic Bottom Valve|
|Discharging Valve||Diameter is 3 or 4 inch|
|Discharging Pipe||4” rubber hose, 2 pcs, 6m/each|
|Cat Walk||With (Common model or special design)|
Welding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
|Axle||3 axles, FUWA brand|
|Landing Gear||CHINA BRAND 28T|
|King Pin||JOST 3.5 inch bolt-in king pin|
|Suspension||Mechanical suspension and air suspension|
|Leaf Spring||90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without|
|Pneumatic Braking System||6 relay valves; Spring brake chamber; one piece of 45L air tanks.|
|Rim||9.00-22.5/8.00-20/8.5-20 China Brand|
|Tire||/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint|
|Accessories||One standard tool box|
|Shipping Terms||By Bulk Cargo ,RORO or 40HQ Containers|
Feature of 40000-50000L Tri-axle Carbon Steel Oil Tank/Fuel Transport Tanker Semi Truck Trailer
3 axle oil fuel tank semi trailer adopt advanced design concept. We also can produce the tanker trailers for different liquid like fuel, petrol, water, palm oil etc.
To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens.
Fuel tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Advantage of 40000-50000L Tri-axle Carbon Steel Oil Tank/Fuel Transport Tanker Semi Truck Trailer
1Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
2The tanker can be produce with 1 compartments to 7 compartments according to customer demand
3Axles: The axle can be selected in different famous brand of BPW and FUWA. Domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
4Suspension system: Mechanical suspension and air suspension series optional.
5Single tire or double tire is optional
Detail of 40000-50000L Tri-axle Carbon Steel Oil Tank/Fuel Transport Tanker Semi Truck Trailer
We will gave you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.
B. Reception & Accompany: After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy 'Genron' products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
