Product Details:
|
| Products Name: | 14 M3 Semi Trailer Mounted Concrete Mixer | Hydraulic Motor: | Italy Brand PMP110 |
|---|---|---|---|
| Hydraulic Speed Reducer: | Italy Brand PMP9Y | Mixing Volume: | 12-20 M3 |
| Keywords: | Concrete Mixer Semi Trailer | Max Payload: | 55 Tons |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | ||
| High Light: | 14m3 Construction Truck Trailer,18m3 Construction Truck Trailer,14m3 Trailer Mounted Concrete Mixer |
||
1. Product Overview:

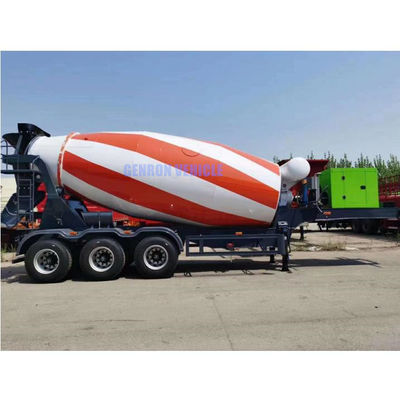

GENRON Concrete Mixer Semi Trailer
For efficient and profitable concrete transport, GENRON offers an extensive range of trailer mixers.
Mixer drums with rated capacities of set concrete between 8 to 14 m³ .
Alternatively, mixers trailer with sizes from 12 to 20 m³ can be delivered as a semi-trailer.
These mixers are noted for numerous striking features, including a low centre of gravity to ensure excellent road behaviour.
easy-to-clean surfaces, a maintenance-friendly concept, low wear and easy access to all components.
Our extensive list of optional extras and accessories satisfies every operating need.
| Concrete Mixer Semi Trailer SPEC | |
| Net Weight | About 10.3 tons |
| Outside dimension | 11900*2550*3990 |
| Effective volume | 18 - 20 m³ |
| Mixing volume | 13 m³ |
| Tank body |
Tank Body thickness : 5mm Blade thickness: 4mm End plate thickness: 8mm |
| hydraulic motor | Italy brand PMP110 |
| Hydraulic speed reducer | Italy brand PMP9Y |
| Engine | Yunnei brand engine |
| Water tank | 400L with two high-pressure water guns |
| Axle | 3 axles ,13 T /PER , Jinsheng Brand |
| Tire | 12.00R22.5 Triangle Brand 13 pcs |
| Rim | 9.00-22.5 carbon steel 13 pcs |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer |
| King pin | JOST brand 90mm bolts type |
| Support leg | Double speed 28Tons |
| Brake system |
WABCO valve; 6 units big spring brake chamber; one piece of 45L air tanks |
| ABS | KEMI |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | 1 pcs |
| Spare tire carrier | 1 pcs |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Wax before shipping. |
2. Product Features:
A. Mixing body use high-strength steel .
B. Hydraulic pump , Hydraulic motor , Decelerator are imported from Italy top one brand .
3. Product Application:
GENRON provide a comprehensive range which encompasses the whole of concrete technology from production of concrete, to concrete transport and installing concrete on the building site.
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
