|Product Name:||Dry Bulk Tanker Trailer||Axle:||4 Axles|
|Max Payload:||25m³-68 M³||Landing Gear:||CHINA BRAND 28T|
|Color:||Customers Optional||King Pin:||JOST 3.5 Inch Bolt-in King Pin|

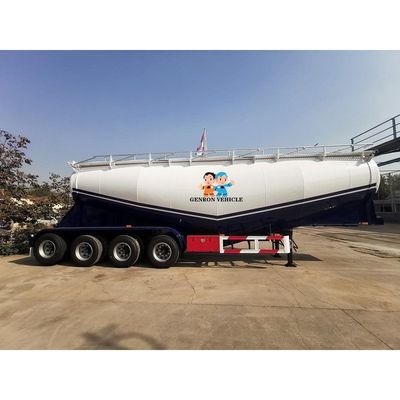

Product introduction of 4 Axles dry bulk tanker trailer
|Tare weight||About 7500KGS-15000KGS|
|Total Volume(m3)||25m³-68 m³|
|Tanker Body Material||5mm or 6mm/ Q235 carbon steel|
|End Plate||5mm or 6mm /Q235 carbon steel|
|Manhole Cover||Carbon steel|
|Discharging Valve||Diameter is 3|
|Discharging Pipe||3 inch rubber hose, 1pcs, 6m/each|
|Cat Walk||With (Common model or special design)|
|Main Beams||Welding Design ,Q345 carbon steel|
|Axle||2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand|
|Landing Gear||JOST (D200T)|
|King Pin||JOST 3.5 inch bolt-in king pin|
|Suspension||Mechanical suspension or Air Suspension|
|Leaf Spring||90(W)mm*13(Thickness)mm*10 Layer|
|Pneumatic Braking System||6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.|
|Rim||9.00-22.5/8.00-20/8.5-20 China Brand|
|Tire||12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint|
|Accessories||One standard tool box|
|Shipping Terms||By Bulk Cargo ,RORO|
Feature of 4 Axles dry bulk tanker trailer
1.Can design different volume of tank body.Volume from 20cbm to 100cbm.
2. Tank material can be carbon steel and aluminum
3.The shape can be V shape,W shape or tapered shape.
4. Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight power material.
5. Man hole 500mm
6.Discharge valve and tube can be 4’’ or other size optional
7.can be outfit engine and air compressor for different volume.
Advantage of 4 Axles dry bulk tanker trailer
1.Suitable for cement, dry powder’ s transport and storage.
2.Tanker body 5mm making the tanker service life longer;
3. Automatic welding guarantee the safety in use;
4. Air belts inside the tanker help the discharge faster;
5.Serious treatment about the surface: sandblasting, puttying of whole tanker body and painting;
6.Reliable and satisfactory after-sale service.
Detail information of 4 Axles dry bulk tanker trailer
Q: Why do you choose Genron?
A:11 years overseas experience:
As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana, Burkina faso, Cameroon, Mozambique, Zambia, Tanzania, Kenya, Malaysia, Indonesia, Philippine, Vietnam, LAOS, Mayanmar, Algeria, Dubai
We will gave you the best price and quality product .Because we hope our cooperation like mirror,Customer as mirror,one side is factory,inside is Genron.
We Minimize all loses that may arise from the producers.We respond to the demands and requirements of the companies, we work with in the most effective way and as soon as possible.
Professional Technical Team:
The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technicalperson:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang(design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).
Q: How we can cooperate (Business Partnership)?
A:As your China Purchasing Agent:
You can buy from the factory directly, we can be your exporting agent in China.
You can be Genron Sales Agent: We have our own brand and logo,we have more than three very Steady producer partners of each product which we supply to you in China,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
Q: What is Genron profit?
A: To be Purchase agent: You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us. You buy from Genron or to be agent of Genron:The factory will pay us export agent fees.
Contact Person: Bruce Ding
