Product Details:
|
Material: | Steel | Size: | 13000mm*2500mm*3800mm |
---|---|---|---|
Volume: | 40000L | Axle: | 13T FUWA Brand / GV Brand |
Suspension: | Mechanical / Air / Bogie Suspension | Tire: | 12.00R22.5 / 315/80R22.5 |
Rim: | 9.00-22.5 | ||
High Light: | 40000L Liquid Tanker Trailer,4 Compartments Liquid Tanker Trailer,3 Axles Liquid Tanker Trailer |

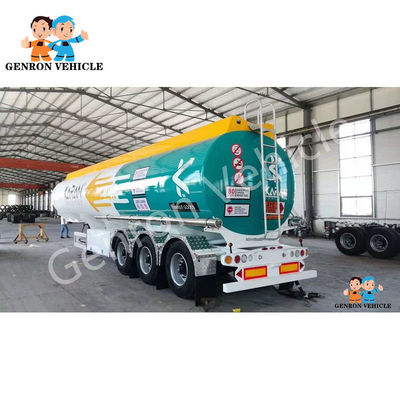

Fuel/Oil Liquid Tanker Trailer Description:
Genron tanker trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.
Genron offers carbon steel, stainless steel or aluminum material tanker trailers. The tank shape can be madesquare round, oval, round. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.
The liquid tanker semi trailer used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc.
Fuel/Oil Liquid Tanker Trailer Details:
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 13000mm*2500mm*3800mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume(m3) | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, ∮500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams |
Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Fuel/Oil Liquid Tanker Trailer Feature:
1. the fuel oil tank is equipped with multi-channel anti-wave partitions, and can be divided into different compartments and load different oil. And can be achieved the pump into, pump out through the table, and pump into, pump out not the table, self-flow through table, and not but table.
2. The use of high-pressure gas leak detection, the tank has a high strength, the center of gravity stability, vehicle safety and stability characteristics.
3. All kinds of alcohol, sulfuric acid, hydrochloric acid, salted chemical tanker use imported stainless steel (thickness of 4mm-5mm) or plastic cans (polypropylene) (thickness of 12mm-22mm) manufacturing.
4. The fuel tank is composed of a power take-off device, a drive shaft, a gear oil pump, a tank body and a pipe network system.Pipe network system consists of oil pump, three-way four-ball valve, two-way ball valve, filter, pipe composition.
5. Fuel dispenser and reel are optional.
6. Gear pump, centrifugal pump, heavy oil pump, stainless steel pump are available and can be installed heating pipe and insulation layer.
Fuel/Oil Liquid Tanker Trailer Advantage:
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
The tanker can be produce with 1 compartments to 8 compartments according to customer demand
Axles: The axle can be selected in different famous brand of BPW and FUWA. Domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Suspension system: Mechanical suspension and air suspension series optional.
Fuel/Oil Liquid Tanker Trailer Production Line:
Our Company Introduction:
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years, Our CEO Mrs. Zhao have 11 years export Construction and trailer trucks experiences; She have visited more than 22 countries for checking trailer truck markets. We can supply the right product in shortest ways and cheapest value.
China as a global manufacturing center, Genron want to be your first service center in china. Genron composed by efficient, experienced and reliable team, has low costs, competitively priced services and reliability reputation. We have ability to reduce risk and facilitate procurement in the mirror trade business averment through our comprehensive system and reliable factories.
The strong advantage of Genron company with other trading company is we have our own professional technical design team.If you uncertain your products or your own design,we can go to visit you ,help you checking and analysis your market and gave you special and right design according to your country situation. As our more than 11 years overseas visited records and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.
FAQ:
Q: Why do you choose Genron?
A:11 years overseas experience:
As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana, Burkina faso, Cameroon, Mozambique, Zambia, Tanzania, Kenya, Malaysia, Indonesia, Philippine, Vietnam, LAOS, Mayanmar, Algeria, Dubai
Mirror Trading:
We will gave you the best price and quality product .Because we hope our cooperation like mirror,Customer as mirror,one side is factory,inside is Genron.
We Minimize all loses that may arise from the producers.We respond to the demands and requirements of the companies, we work with in the most effective way and as soon as possible.
Professional Technical Team:
The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technicalperson:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang(design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).
Q: How we can cooperate (Business Partnership)?
A:As your China Purchasing Agent:
You can buy from the factory directly, we can be your exporting agent in China.
You can be Genron Sales Agent: We have our own brand and logo,we have more than three very Steady producer partners of each product which we supply to you in China,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
Q: What is Genron profit?
A: To be Purchase agent: You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us. You buy from Genron or to be agent of Genron:The factory will pay us export agent fees.
Contact Person: Bruce Ding
Tel: +8615666070038
