Product Details:
|
| Material: | Steel | Suspension: | Mechanical Suspension (Germany Type Or America Type) Or Air Suspension (China Brand Or BPW Brand ) |
|---|---|---|---|
| Axle: | 13 T/16T, FUWA /BPW /Huajing Brand | Color: | Customized |
| Dimension: | 13000mm*2490mm*2860mm (Outerside) 12800*2300*1800mm | Loading Capacity: | ≤ 60T |
| Tire: | 12.00R22.5/ 315 80R22.5 | Rim: | 9.00-22.5 |
| King Pin: | JOST Brand 2.0 Or 3.5inch Bolts Type Or Welding Type | Spring Leaf: | 90(W)mm*13(Thickness)mm*10 Layer Or 100mm*12mm*12 |
| High Light: | BPW storage container trailer,BPW Dropside Semi Trailer,Genron storage container trailer |
||
Product Description
Our products are produced according to the requirements of customers, which is our advantage, because we have a very strong design ability, please let me know the size, nature, weight of the goods you carry, we will design the vehicle you want in the shortest time. Tell us your requirements, we will provide you with accessories to satisfy your needs. We can purchase accessories from domestic and foreign enterprises, or according to the special requirements of customers, we can also purchase accessories from foreign manufacturers or Chinese manufacturers which are technically recognized by us. Please contact us in time, so that you get the best service!
Semi trailer with barrier structure design at the loading position. It is mainly used for the transportation of agricultural and sideline products, animals, coal, steel coils, or other light goods.
Characteristics Of Genron Brand 3 Axles Storage Semi Truck Trailer
1. The design process of vehicle type and fence structure is combined with the user's cargo category, and the reasonable design can fully reduce the weight of the carriage under the load condition. The structure is simple and applicable, and the disassembly is convenient. It can reduce the investment cost for users and create more profit value.
2. Frame: a space frame structure composed of longitudinal beam and integral through beam. It can balance the strength, rigidity and toughness of the frame, with strong bearing capacity and no permanent deformation.
3. Series of rack type semi-trailer frame are beam through structure, longitudinal beam adopts flat type or goose neck type. The height of the web is from 450mm to 500mm. The longitudinal beam is welded by automatic submerged arc welding. The frame is shot blasted. The cross beam is penetrated into the longitudinal beam and welded as a whole.
4. Suspension system: it adopts new American or German mechanical suspension system with high strength and strong impact resistance; the load of each axle is balanced, and the angle of system pull rod is reasonably designed. In the process of frequent bumps, the friction and slip distance between the tire and the ground can be reduced, and the tire wear can be effectively reduced. At the same time, the pull rod can be adjusted to adjust the wheelbase, so as to effectively avoid the phenomenon of tire eccentric running in and gnawing.
5. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers

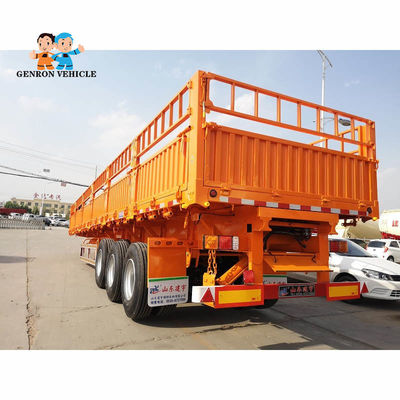

Genron Brand 3 Axles Storage Semi Truck Trailer With Mechanical Suspension Used To Delivery Steel Coils
| Tare Weight | About 8.3T |
| Dimension |
13000mm*2490mm*2860mm (Outerside) 12800*2300*1800mm |
| Loading Capacity (T) | ≤ 60 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 |
| Tire | 12.00R22.5/ 315 80R22.5 |
| Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
| Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Side Wall |
600mm-1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube |
| Bottom Platform | 3mm-5mm thickness (According to the capacity which you loading for ) |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);One piece of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Product Details
Our Service
1.Before Sale Service
Quotation:
We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
2.After Sale Service
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
Why Choose Us ?
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security. Just trust us, you will get a satisfactory answer.
Certifications
FAQ
Q:Which semi trailer brand is best in China ?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement ?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer ?
A: I will shipping trailer to your port after you pay money.
Q: What’s your payment terms ?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer ?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
