|Product Name:||Liquid Tanker Trailer||Size:||12000mm*2490mm*3990mm|
|Axle:||4 Axles||Type:||Semi Trailer|
|Use:||Ship For Oil And Diesel Or Fuel.||Weight:||About 8000KGS-12800KGS|
|Color:||Customer Optional||Feature:||Easy Operate And Safe|
50CBM milk transport trailer,
50CBM oilfield trailers,
50000L milk transport trailer

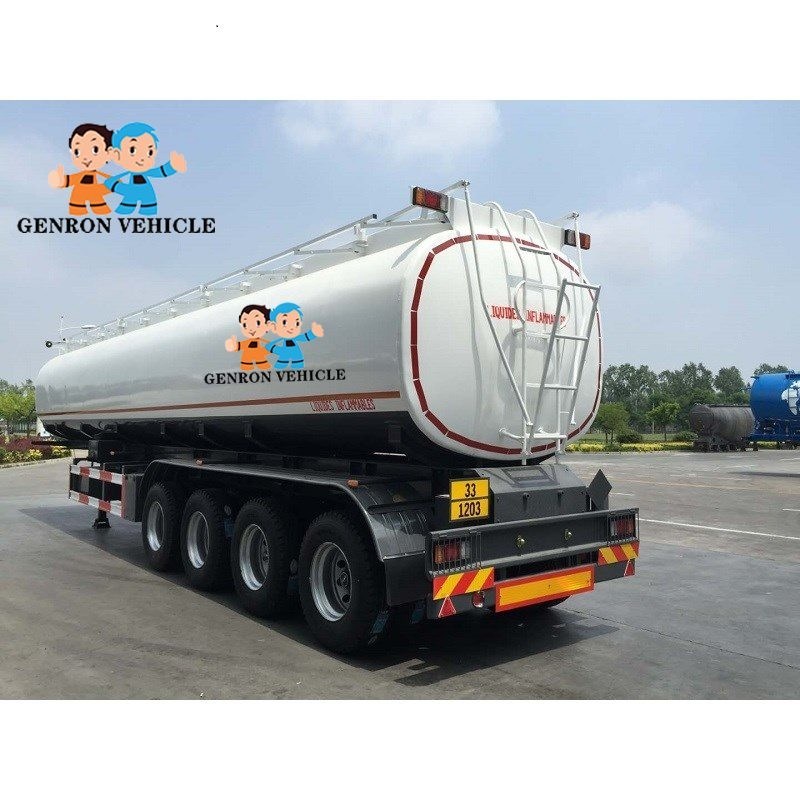

Product Introduction of 4 Axles Air Suspension 40Cbm 50Cbm Steel Fuel Oil Diesel Chemical Tank Truck Trailer
|Shape||Optional ( Round or Square)|
|Dimension||12000mm*2490mm*3990mm ( Exact size depends on the final design)|
|Tare weight||About 8000KGS-12800KGS|
|Total Volume(m3)||25m³-60 m³|
|Tanker Body Material||5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel|
|End Plate||5mm or 6mm /Q235 carbon steel /aluminum /stainless steel|
|Manhole Cover||Carbon steel or Aluminum alloy API manhole cover, ∮500mm|
|Bottom Valve||Aluminum API Pneumatic Bottom Valve|
|Discharging Valve||Diameter is 3 or 4 inch|
|Discharging Pipe||4” rubber hose, 2 pcs, 6m/each|
|Cat Walk||With (Common model or special design)|
Welding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
|Axle||2 or 3 axles, BPW/FUWA/GV brand|
|Landing Gear||JOST (D200T)or CHINA BRAND 28T|
|King Pin||JOST 2.00 or 3.5 inch bolt-in king pin|
|Suspension||Mechanical suspension/Germany or America type /air suspension|
|Leaf Spring||90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without|
|Pneumatic Braking System||6 relay valves; Spring brake chamber; one piece of 45L air tanks.|
|Rim||9.00-22.5/8.00-20/8.5-20 China Brand|
|Tire||/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint|
|Accessories||One standard tool box|
|Shipping Terms||By Bulk Cargo ,RORO or 40HQ Containers|
Advantage of 4 Axles Air Suspension 40Cbm 50Cbm Steel Fuel Oil Diesel Chemical Tank Truck Trailer
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
The tanker can be produce with 1 compartments to 7 compartments according to customer demand
Axles: The axle can be selected in different famous brand of BPW and FUWA. Domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Suspension system: Mechanical suspension and air suspension series optional.
Single tire or double tire is optional
Feature of 4 Axles Air Suspension 40Cbm 50Cbm Steel Fuel Oil Diesel Chemical Tank Truck Trailer
1. the tank shape: square round, oval, round.
2. tank material: carbon steel, stainless steel, steel lined, glass steel
3. the tank is equipped with multi-channel anti-wave partitions, and can be divided into different compartments and load different oil. And can be achieved the pump into, pump out through the table, and pump into, pump out not the table, self-flow through table, and not but table.
4. The use of high-pressure gas leak detection, the tank has a high strength, the center of gravity stability, vehicle safety and stability characteristics.
5. All kinds of alcohol, sulfuric acid, hydrochloric acid, salted chemical tanker use imported stainless steel (thickness of 4mm-5mm) or plastic cans (polypropylene) (thickness of 12mm-22mm) manufacturing.
6. The fuel tank is composed of a power take-off device, a drive shaft, a gear oil pump, a tank body and a pipe network system.
Pipe network system consists of oil pump, three-way four-ball valve, two-way ball valve, filter, pipe composition.
7. Fuel dispenser and reel are optional.
8. Gear pump, centrifugal pump, heavy oil pump, stainless steel pump are available and can be installed heating pipe and insulation layer.
We will gave you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.
B. Reception & Accompany:
After you accepted the offer price we have made to your company have the pre-interview,you can come to visit our office and then go to visit factory,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose,we can arrange our professional technical checking your market together with you.
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy“Genron” products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
If you only buy spare parts, our engineer can go to your factory to teaching your employee how to assembly the products!
Q: Why do you choose Genron?
A:11 years overseas experience:
As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana, Burkina faso, Cameroon, Mozambique, Zambia, Tanzania, Kenya, Malaysia, Indonesia, Philippine, Vietnam, LAOS, Mayanmar, Algeria, Dubai
We will gave you the best price and quality product .Because we hope our cooperation like mirror,Customer as mirror,one side is factory,inside is Genron.
We Minimize all loses that may arise from the producers.We respond to the demands and requirements of the companies, we work with in the most effective way and as soon as possible.
Professional Technical Team:
The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technicalperson:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang(design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).
Q: How we can cooperate (Business Partnership)?
A:As your China Purchasing Agent:
You can buy from the factory directly, we can be your exporting agent in China.
You can be Genron Sales Agent: We have our own brand and logo,we have more than three very Steady producer partners of each product which we supply to you in China,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
Q: What is Genron profit?
A: To be Purchase agent: You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us. You buy from Genron or to be agent of Genron:The factory will pay us export agent fees.
Contact Person: Bruce Ding
