|Material:||Steel||Suspension:||Mechanical Suspension/ America Type|
|King Pin:||JOST 2.00 Or 3.5 Inch Bolt-in King Pin||Landing Gear:||JOST (D200T）or CHINA BRAND 28T|
|Axle:||3 Axles, FUWA/HUAJING Brand 16tons Per Axles||Color:||Customized|
|Dimension:||11280*2495*3970mm ( Outside) 10500*2300*1700mm (work Space )||Loading Capacity:||50T|
50T Dump Semi Trailers,
Genron heavy duty dump trailers,
aluminum tri axle dump trailer

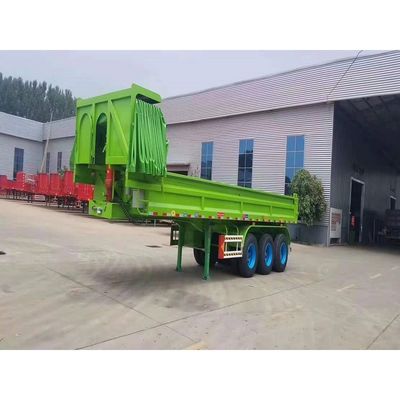

3 Axles 50T Dump Semitrailer With Automatic Cord Export To Kenya, Tanzania, Zambia, Ghana, Kazakhstan, etc
1. We can customize it according to your requirements.
2. The Logo can be customized.
3. If you only buy spare parts, Our engineer can go to your factory to teaching your empolyee how to assembly the products !
11280*2495*3970mm ( outside)
10500*2300*1700mm (work space )
|Tare weight||About 15600KGS|
|Total Volume(m3)||37 m³ or less than 80tons|
|Side wall thickness(mm)||6mm Q235 steel|
|Bottom plate thickness(mm)||8mm /Q235 steel|
|Lifting system||Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder|
|Main Beams||Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel|
|Axle||3 axles, FUWA/HUAJING brand 16tons per axles|
|Landing Gear||JOST (D200T)or CHINA BRAND 28T|
|King Pin||JOST 2.00 or 3.5 inch bolt-in king pin|
|Suspension||Mechanical suspension/ America type /|
|Leaf Spring||90(W)mm*13(Thickness)mm*10 Layer|
|Pneumatic Braking System||WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.|
|Rim||9.00-22.5/8.00-20/8.5-20 China Brand|
|Tire||/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint|
|Accessories||One standard tool box|
|Shipping Terms||By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .|
Details Of 3 Axles 50T Dump Semitrailer With Automatic Cord
Features Of 3 Axles 50T Dump Semitrailer With Automatic Cord
1. It is suitable for the transportation of bulk bulk bulk goods such as coal, ore and construction materials. Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering and other transportation tasks, usually used together with excavators. The other type of light and medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand, soil, coal and other loose goods, which is usually used together with loaders.
2. The carriage adopts rollover and backward dump mode, which can effectively improve the transportation efficiency of bulk goods transported by the loader.
3. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.
4. Hyva hydraulic jacking cylinder is selected, which has stable lifting performance. The longitudinal beam is made of automatic submerged arc welding. The axle and steel spring are accurately assembled by assembly machine.
5. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers.
The Factory Workshop
We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
2.After Sale Service
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
Delivery & Shipping
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
